The Backbone of Industry: The Core Value and In-Depth Analysis of Fiberglass Backing Pads in Flap Discs

Foreword: More Than Just a Back up, It's the Cornerstone of Performance

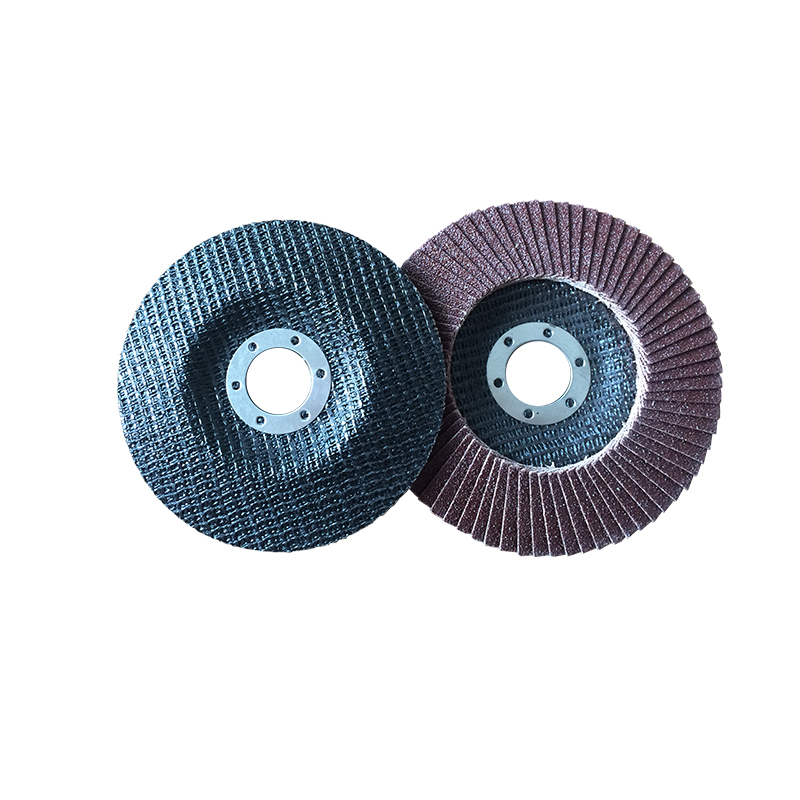

In the abrasives industry, flap discs are highly favored for their efficient simultaneous grinding and polishing. However, most people focus on the overlapping blades overlooking the unsung hero behind them—the fiberglass backing pad.

As the "skeleton" and "backbone" of the flap disc, the quality of the fiberglass backing pad directly determines the safety limits, operational accuracy, and service life of the grinding disc. This article will delve into the technical logic of this core component.

I. Core Structure: Why Choose Fiberglass?

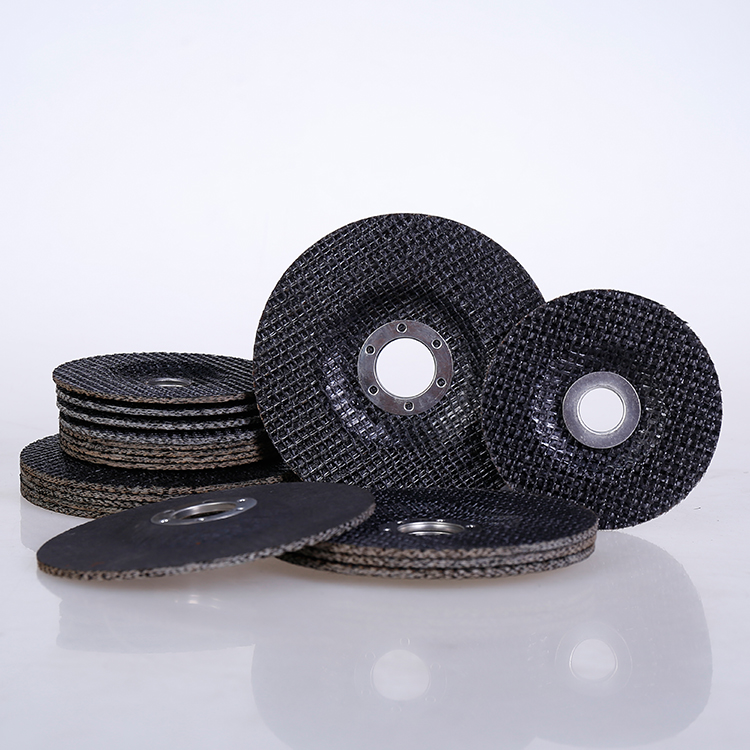

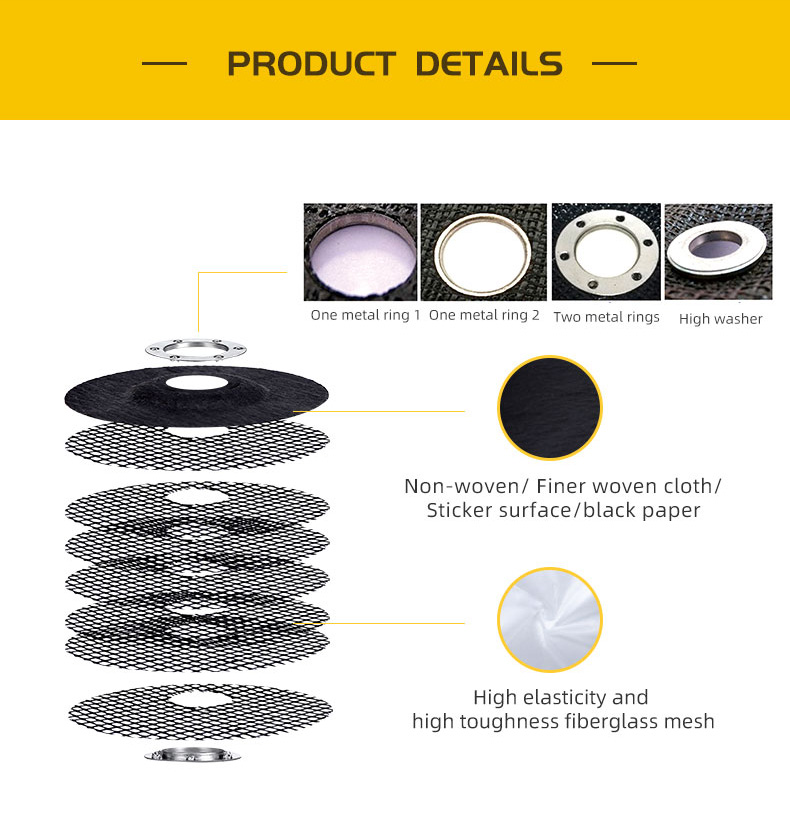

The fiberglass backing pad is mainly made of high-quality alkali-free fiberglass fabric and special phenolic resin through high-temperature molding. Compared to plastic or metal matrices, it offers the following unparalleled advantages: Balance of Extreme Strength and Lightweight

1. Fiberglass possesses extremely high tensile strength, capable of withstanding burst speeds exceeding 13,300 RPM (for 115mm specifications), while its weight is significantly lower than metal, significantly reducing vibration in handheld power tools and minimizing operator fatigue.

Excellent Chemical Stability and Adhesion

2. Phenolic resin has a natural affinity with abrasive cloth adhesives, ensuring that the blades remain firmly attached, preventing detachment or scattering under the thermal shock generated during high-speed grinding.

Excellent Shock Absorption

3. The fiberglass structure has a degree of micro-elasticity, effectively absorbing the impact force during operation, resulting in a smoother grinding process and a more uniform workpiece surface texture.

Non-Staining

4. At the end of the wear process, the fiberglass backing will not scratch the workpiece surface like a metal cap, ensuring processing quality.

II. Technical Parameters: The "Hidden Code" Determining Quality

Evaluating a high-quality mesh cover typically requires focusing on the following core indicators:

Layers

●: Commonly, there are 7 to 13 layers. More layers generally mean higher strength and better stability. High-intensity, heavy-duty operations usually require 9 or more layers.

Surface Treatment

●: High-quality mesh covers are usually covered with black cloth or non-woven fabric. This is not only for aesthetics but also enhances adhesive penetration and bonding strength by increasing surface area.

Concentricity and Balance

●: Excellent geometric tolerances ensure dynamic balance during rotation, which is crucial for preventing motor wear and operational vibration.

Hole Diameter Accuracy

●: Typically available in 22.23mm (7/8") or 16mm. Precise hole alignment is the first line of defense for operational safety.

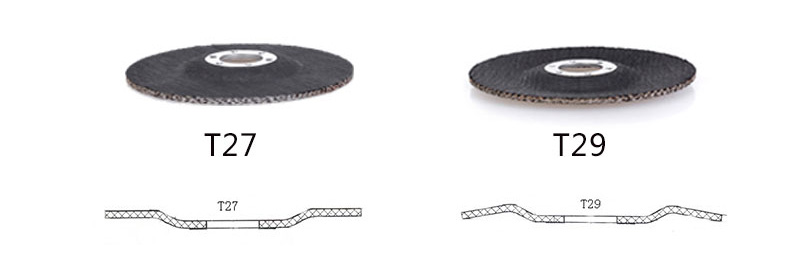

III. Mainstream Forms: Type 27 and Type 29

Based on operational requirements, the mesh cover is designed in two main forms:

T-27 (Flat Type)

●: Flat mesh cover. Suitable for fine polishing and surface flatness, providing maximum contact area.

T-29 (Conical Type)

●: Curved/beveled mesh cover. Its 15° tilt angle allows operators to naturally obtain a better entry angle when performing heavy-duty grinding (such as weld cleaning), improving efficiency.

IV. Safety Standards: The Significance of EN13743 Certification

In the global market, compliance with EN13743... Standards serve as the "entry permit" for fiberglass mesh covers to enter the high-end supply chain. This means the mesh cover must pass rigorous destructive speed tests, drop tests, and damp heat aging tests. In high-speed rotating operating environments, mesh cover breakage can lead to catastrophic consequences; therefore, safety is the most important factor in evaluating mesh cover quality.

V. Conclusion: A Key Step in Supply Chain Upgrading

For louver manufacturers, choosing high-quality fiberglass mesh covers is not about increasing costs, but about building core competitiveness. A stable, high-strength back cover allows the abrasive cloth to perform at its best, providing end users with a perfect grinding experience that is "safe, stable, and efficient."
